[OFFICIAL] Honkai Star Rail Acheron RGB Backlit Mechanical Keyboard

Pre-sale product, expected to ship in Jan 2025.

Item Name: Honkai Star Rail Acheron RGB Backlit Mechanical Keyboard

Specifications:

• 108-Key:  444.7 x 136.6 x 39.7mm
• 87-Key:  364 x 137 x 44mm

Material:

• Keyboard Frame: ABS
• Keycap: PBT
• Transparent Keycap: PC

Keycap Process: 5-Sided Heat Sublimation, Silk Screen Printing.

Feet: 2 Stages

Backlit: 16 Milloin Customizable RGB Colors, 108 Key Lower Light Position,87 Key Upper Light Position

Battery Capacity: 8000 mAh

Keyboard Structure: GASKET

Keyswitch Seat: Kailh

Keyswitch Option: Kailh Ice Cream Switch, Kailh Crystal Pearlescent Purple Switch

Connection: Bluetooth 5.0 / 2.4G wireless / Type-C

System Support: Windows / MacOS / Linux / Android

Contents:

1. Keyboard
2. USB-A to USB-C data cable
3. User Manual (three templates)

4. 2.4G Receiver
5. Keycap Puller
6. 3 switches of the same type as the keyboard
7. Dust Cover

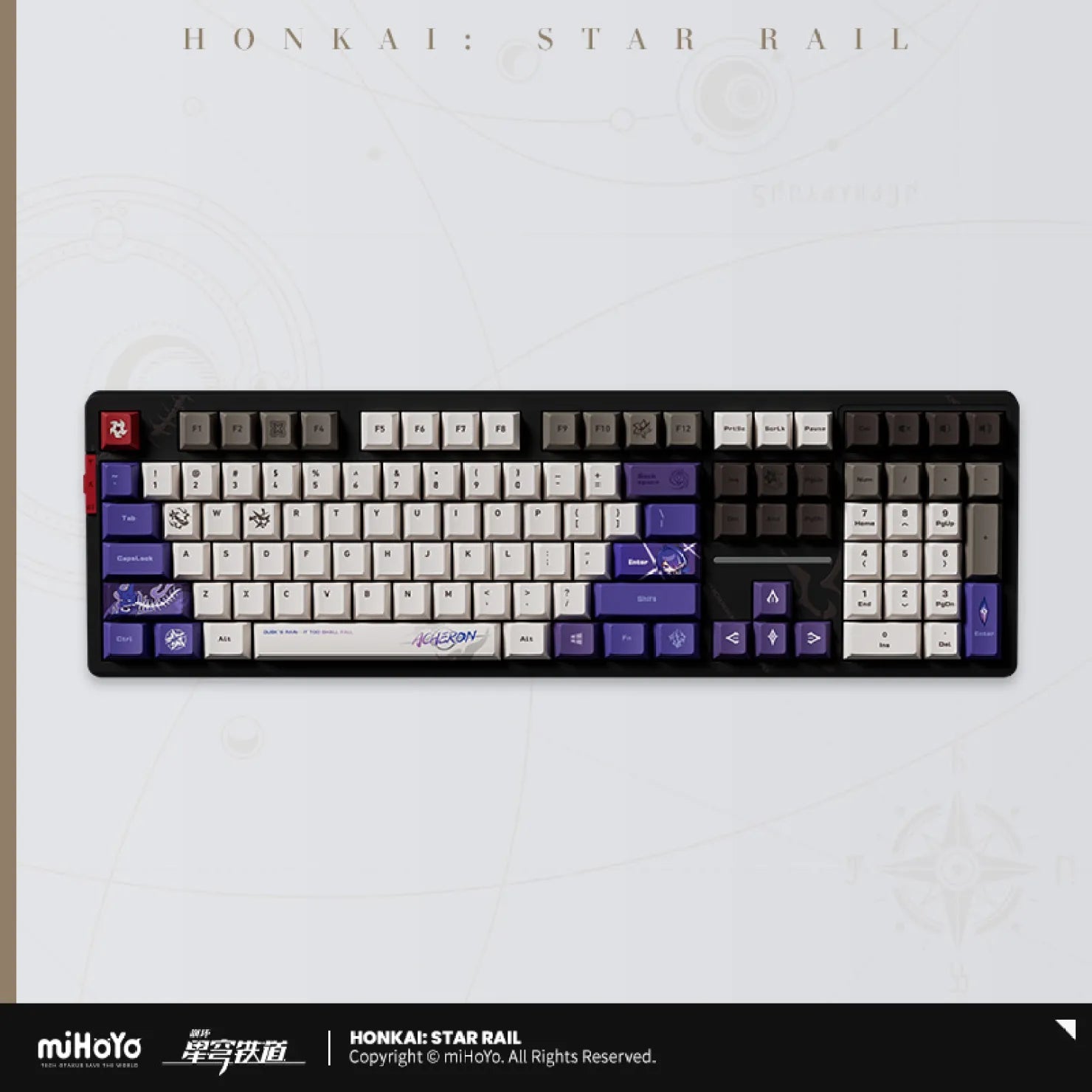

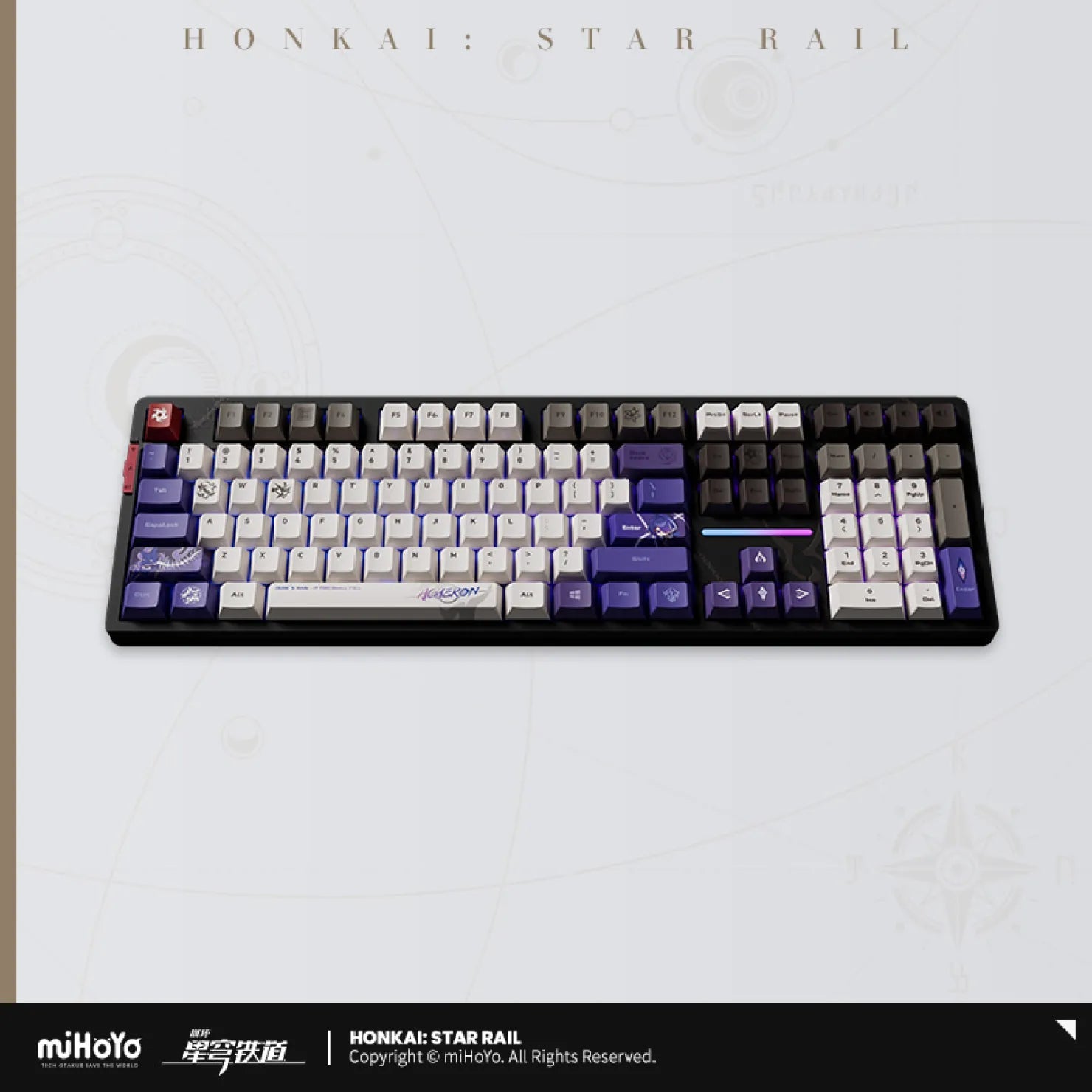

Keyboard 87Key / 108 Key Display

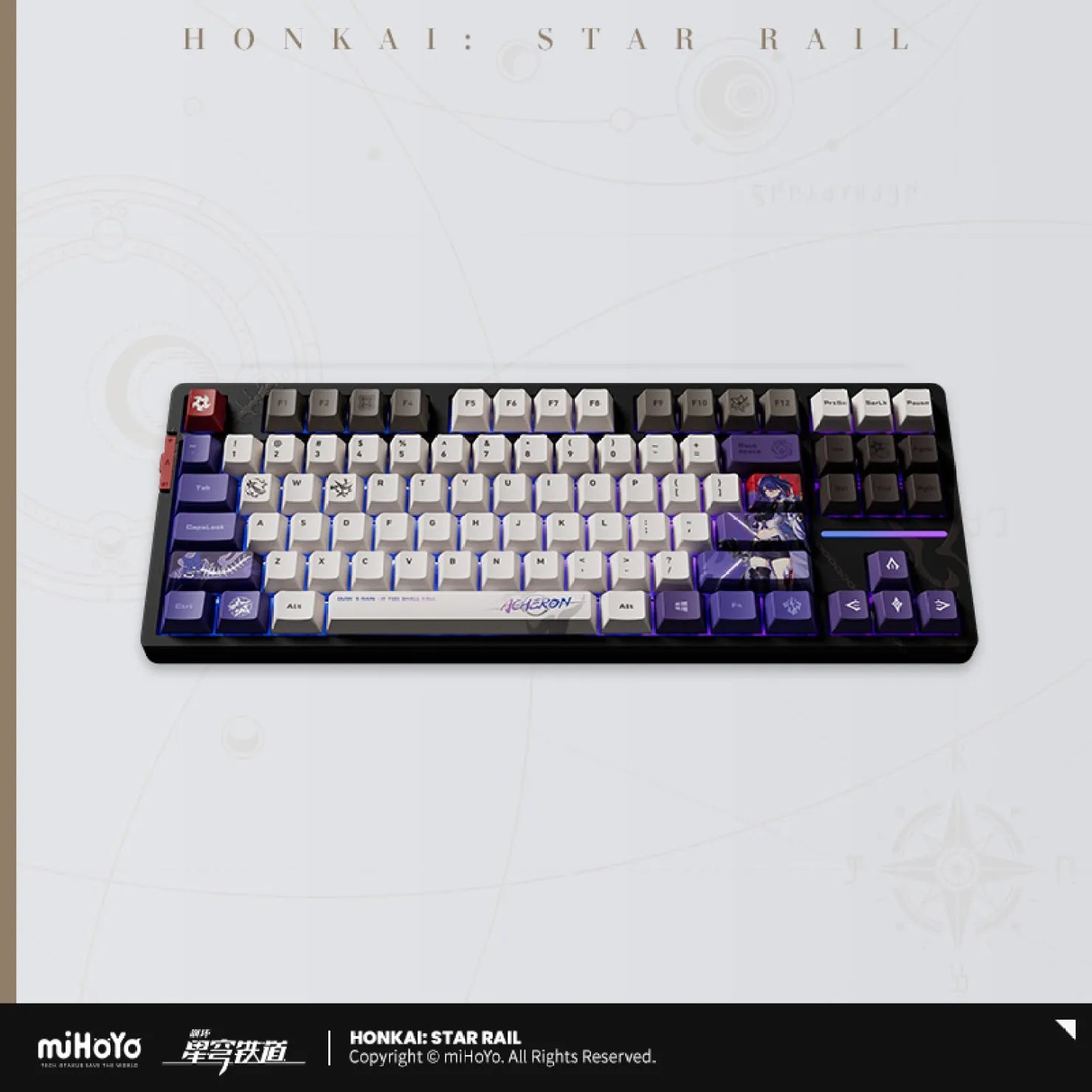

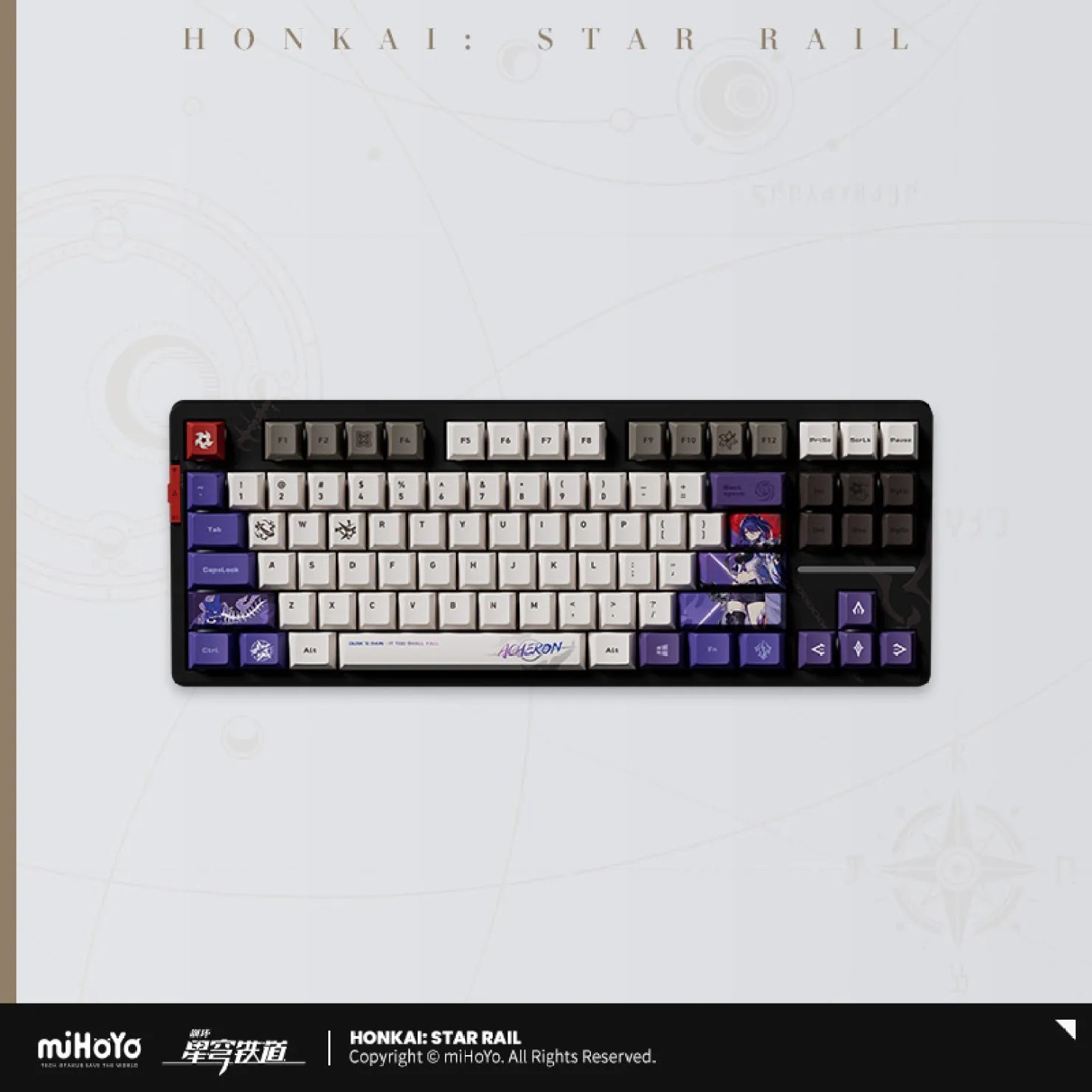

87Key Keyboard With Compact Keyboard Layout to Saves More Desktop Space

Themed Keycaps

 All keycaps are divided into 4 categories according on height (R1-R4)

When replacing keycaps, they must be matched according to category.

Incorrect replacement may cause damage to the keycaps and switches!

Keyswitch Options

Ice Cream Switch

• Type: Linear
• Operating Force: 45±10gf
• Pre-travel Distance: 1.7±0.5mm
• Total Travel Distance: 4.0±0.3mm

Crystal Pearlescent Purple SwitchSwitch

• Type: Paragraph
• Operating Force: 45gf
• Pre-travel Distance: 1.8±0.3mm
• Total Travel Distance: 3.6±0.3mm

Connection Method

Wireless three-mode connection
Bluetooth 5.0 / Wireless 2.4G / Type-C three connection modes support multiple systems to meet the needs of different scenarios.

QUICK START:
2.4G WIRELESS CONNECTION:

1. Take out the receiver from the storage slot on the right side
2. Plug the receiver into the USB port of your computer
3. Pull the mode switch on the left to 2.4G mode

BLUETOOTH CONNECTION:

1. Pull the mode switch on the left to Bluetooth mode
2. Long press Fn + number key 1, 2 or 3 to start pairing, the long indicator light flashes quickly during pairing
3. Supports pairing with up to 3 devices. Press Fn + number keys 1,2or 3 to switch devices.

WIRED CONNECTION:

1. Insert the Typc-C cable into the keyboard port
2. Connect the cable to the computer
3. Move the mode Switch on the left to the middle

TIPS:

WIN: Unable to use when Win key is locked, Option key in MAC mode

ALT: Command key in MAC mode

Switch between windows and MAC mode:

Fn + A = Switch to Windows mode

Fn + S = Switch to MAC mode

Backlit Mode

16 Million Adjustable RGB Colors
Rich light effects, lower light position design suitable for more keycaps.

Custom lighting effects:

Press Fn + ~ to call up the Custom backlight, which only supports a set of Custom memory lights.

CUSTOM LIGHTING EDITOR:

1. Press Fn + ~ to switch to the custom light mode;

2. Press Fn + ~ again to start editing the light. At this time, press the key to be defined. The color of the keyboard light changes with each press.

3. After editing, press Fn + ~ again to save the edited light.

Battery Capacity

8000mAh Super Long Battery Life

All keys have no rollover, 1000Hz high return rate, paired with a large 8000mAh battery, and support SMART SPEED low-latency technology, bringing an e-sports-level low-latency experience.

Hot-Swappable Base

All-Key Hot-Swappable Base

FAQ

Q: Why doesn't my Win key work?
A: When the Win key is locked after pressing the Fn+Win key, the Win key cannot be triggered and used. At this time, the Win indicator light on the keyboard is on, and it can be unlocked by pressing Fn+Win again.
Q: Why are my Win key and Alt key reversed and F1-F12 not responding or turning into function keys?
A: After pressing Fn+S, the keyboard will switch to MAC mode. At this time, under the Windows system, the Win key and Alt key will be reversed, and Fn+F1-F12 will become function keys; press Fn+A to switch Return to Windows mode.

Notes:

• Do not use the device in a humid or high temperature environment to avoid damage to the product.
• Do not immerse the product in any liquid to avoid short circuit or damage to electronic components.
• Do not disassemble or modify the keyboard by yourself to avoid damage to the keyboard and cause safety hazards. If the keyboard fails, please contact professional maintenance personnel for repair.
• During use, if you find that the keyboard is abnormally hot, smoking, or has a strange smell, etc., stop using it immediately.
• Please use batteries that meet the keyboard specifications, and avoid using inferior batteries or mixing batteries of different models to cause damage to the keyboard.
• When the keyboard is not used for a long time, please remove the battery to prevent battery leakage from damaging the keyboard.
